Tri-axle 50 Tons Low Loader Semi Trailer
Tri-axle 50 Tons Low Loader Semi Trailer
Tri-axle 50 Tons Low Loader Semi Trailer
Tri-axle 50 Tons Low Loader Semi Trailer
Tri-axle 50 Tons Low Loader Semi Trailer
Tri-axle 50 Tons Low Loader Semi Trailer
Tri-axle 50 Tons Low Loader Semi Trailer

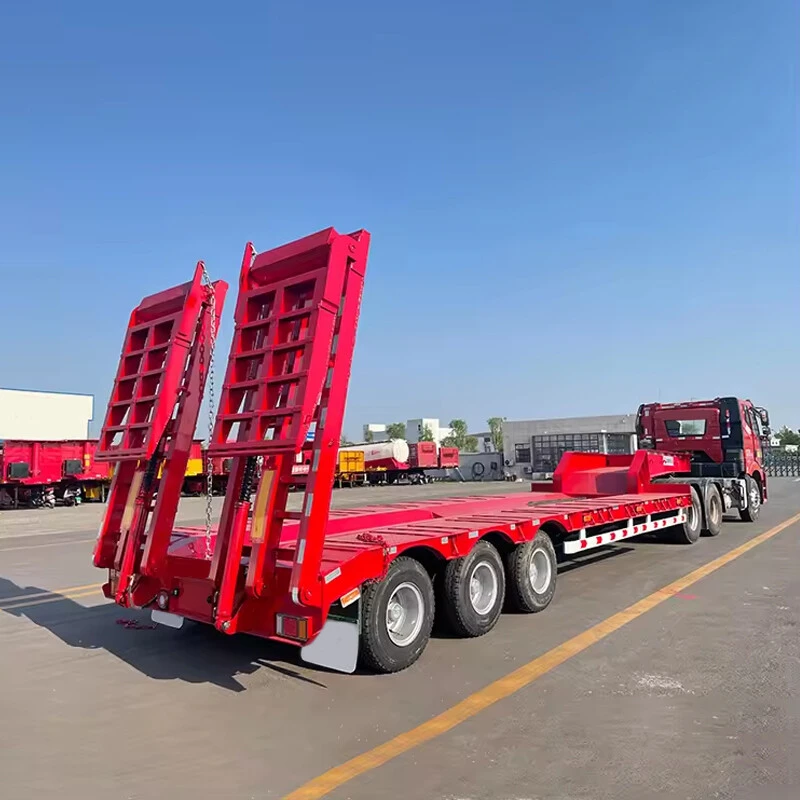

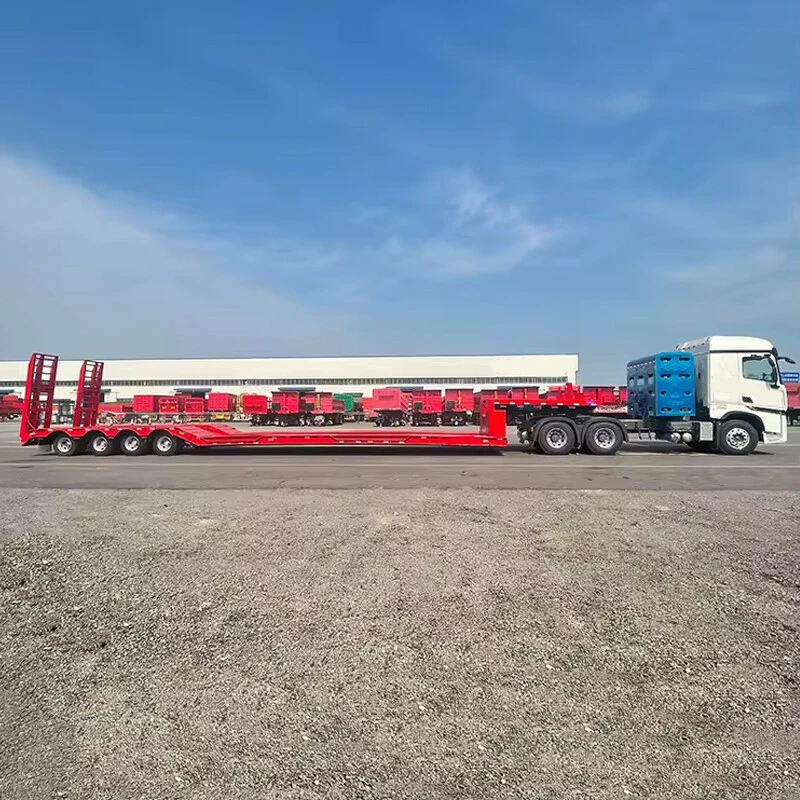

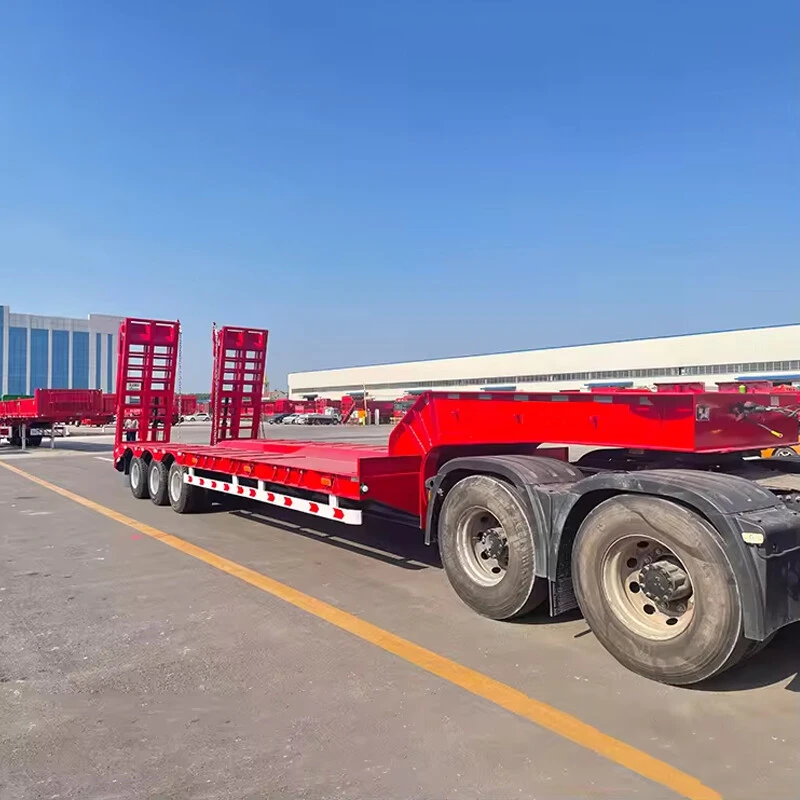

This low loader trailer is payload is 50 tons. it could be used for the carrying of heavy duty machinery or equipment. The trailers' working platform is 1,250mm in height. width is 3,000mm. overall length is 13,000mm.
Tel : +86 15506439065
Email : VIP@zonghuimaterial.com
WhatsAPP : +86 15506439065
Address : Room 3805 Metropolitan Vanke CenterLixia district Jinan City Shandong Province

Product Details

Specifications


  Dimension(mm)  length×width×height:13000×3000×H(The height will be adjusted according to the tractor specification)
  Fifth wheel height(mm)  The height will be adjusted according to the tractor specification
  Axle space(mm)  8480+1310
  Tare weight(kg)  approximate 11,000
  Payload (kg)  50,000
  Kingpin  2''/3.5"JOST ,exchangeable
  Landing gear  JOST C200T / FW 19" ,option by CIMC factory
  Brake system  30/30 type on each axle, WABCO brake valve
  ABS  Optional
  Suspension  Mechanical suspension with 8 leaf ,4 pieces full length
  Axle  FUWA 13T × 3
  Tire  12.00R22.5-16PR,equip 13per chassis
  Toolbox  1 set  steel box,1m
  Spare tire carrier  equipped 1 unit per chassis
