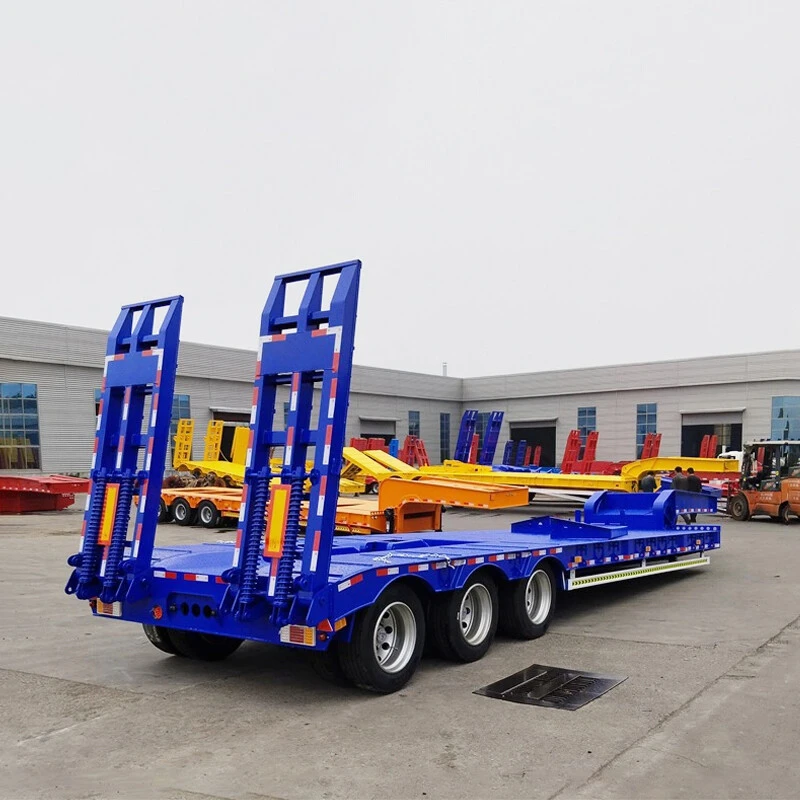

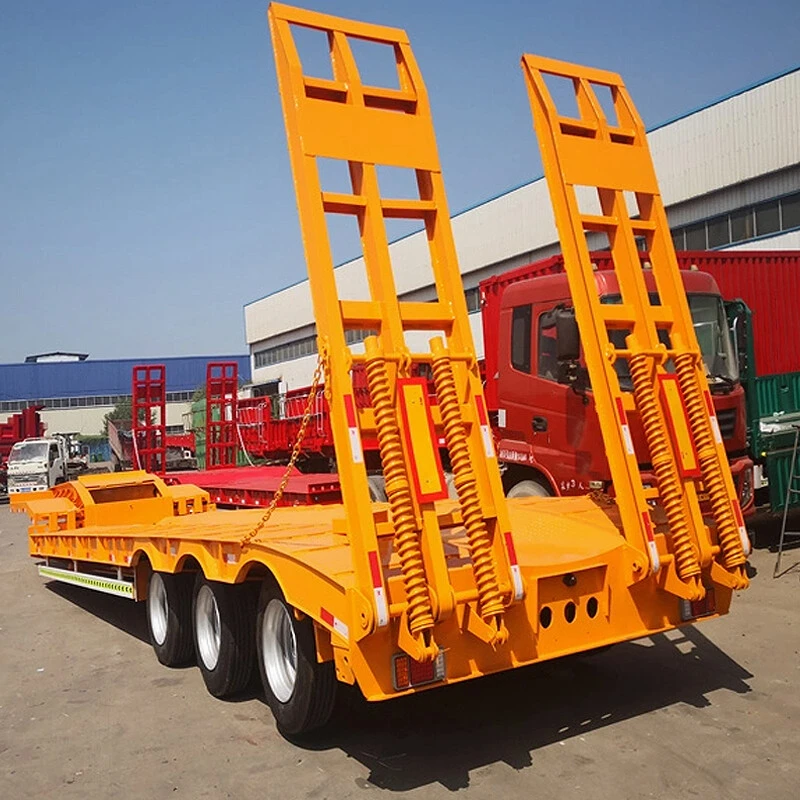

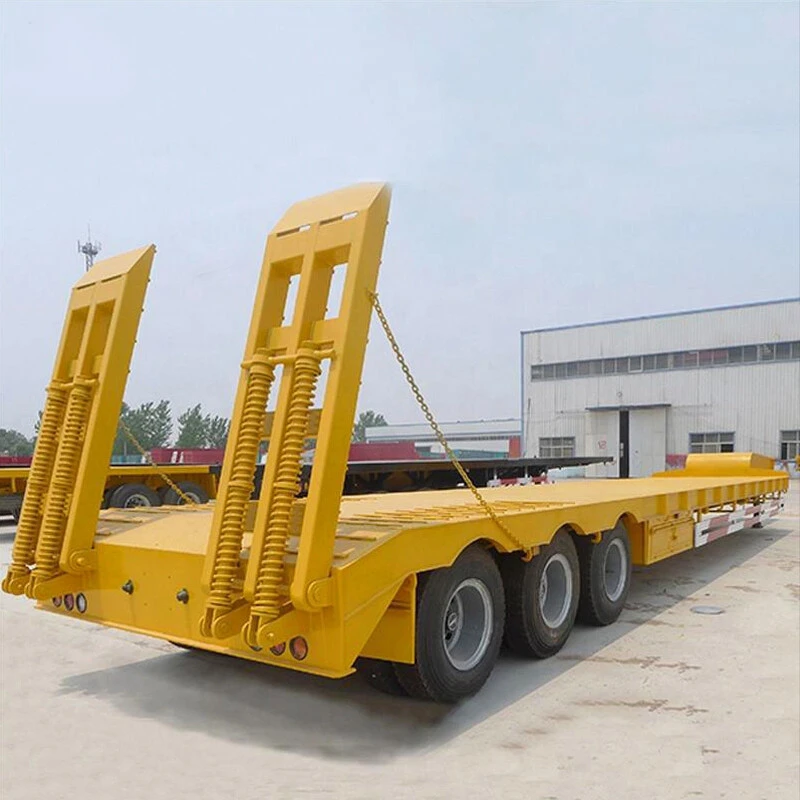

Name: 3 Axle 50 Ton Lowbed Semi-Trailer For Transporting Wheel Loader
SKU: 0







3 Axle 50 Ton Lowbed Semi-Trailer For Transporting Wheel Loader

Lead Time:15-20 DAYS
Product Origin:China
Shipping Port:ANY PORT, CHINA
Color:OPTION

Product Details

Specifications

Dimension(LWH)	(10800-12000)(2800-3200)850mm
Main frame	Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Model	SS9450TDP
No. of axle	2/3/4
Payload	45,000-55000kgs
King Pin	JOST brand bolt-in/welded type 3.5”/2”
Landing Gear	JOST brand two-speed manual operation 19”
Tire size	11.00R20、11R22.5、12R22.5、315/80R22.5、385/65R22.5
Rim size	8.2522.5、9.0022.5、11.75*22.5
Axle	Original BPW-12T/ FUWA-13T
Suspension	Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Braking System	Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electrical System	One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Painting	S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
Accessory	One tool box; one set of standard tool
Remark	We can build the trailers according to customer’s design and requirement
