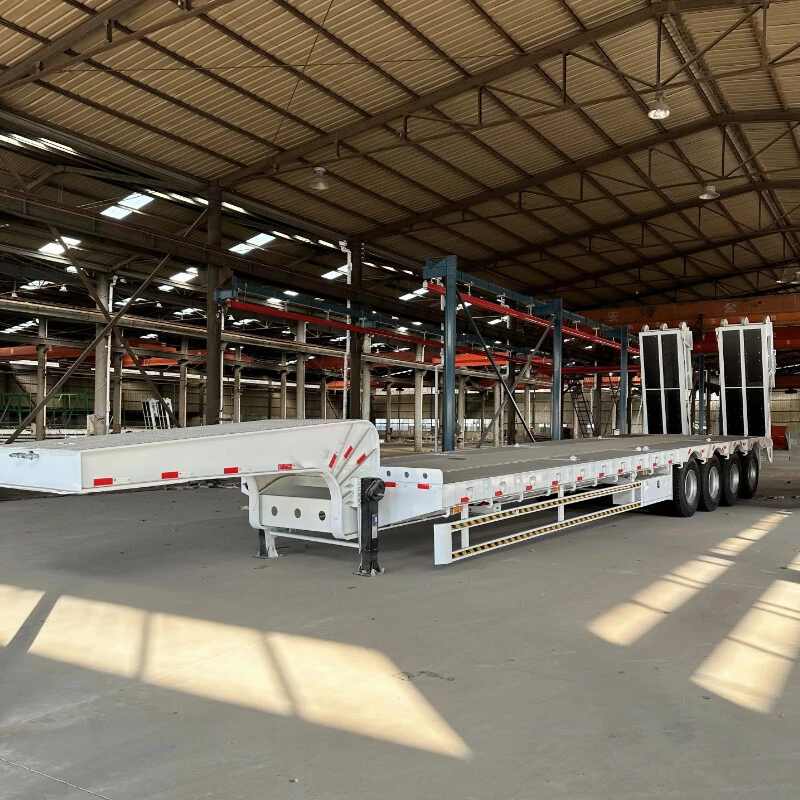

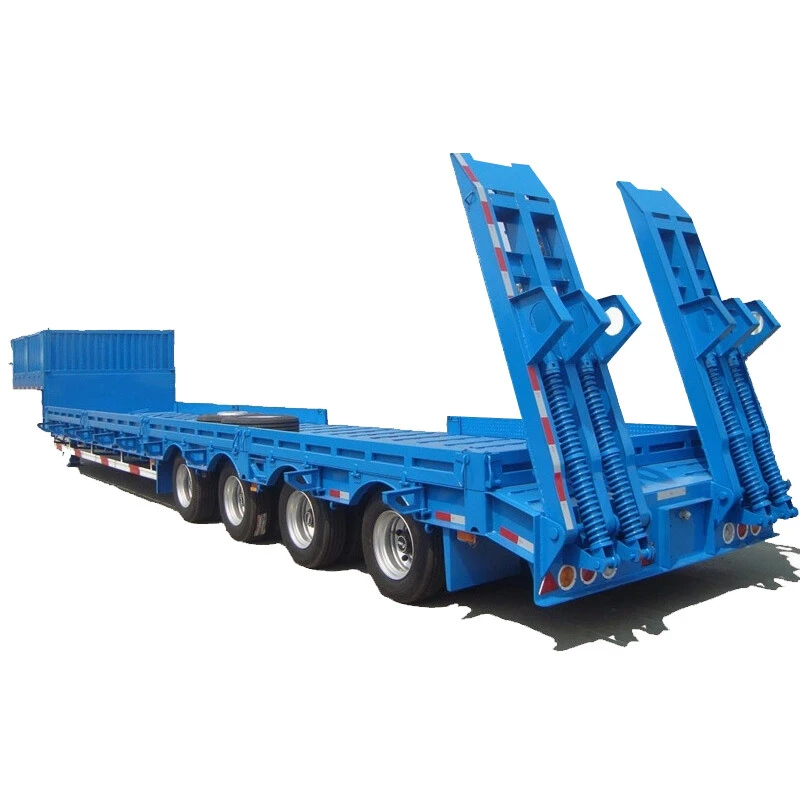

4 axles 70 tons low bed semi-trailer with spring suspension
The Low bed trailers are customizable and easy to operate. Low bed semi-trailer normally be used for transport concrete and steel structures, components of windmills or transformers and heavy construction equipment,heavy duty trucks like excavators,road loader,tractor truck etc.
Tel : +86 15506439065
Email : VIP@zonghuimaterial.com
WhatsAPP : +86 15506439065
Address : Room 3805 Metropolitan Vanke CenterLixia district Jinan City Shandong Province

Product Details

Specifications


  Dimension  15600*3000*3440(1050)
  Payload (kg)  70,000
  Cargo Deck Size(mm)  12200*3000
  Kingpin  3.5” bolt-in
  Landing gear  19”
  Tire size  10R20 (17 sets)
  Rim size  7.5*20 (17 sets)
  Suspension  mechanical suspension
  Axle  FUWA BRAND 4 axles,13ton
  Air Valve  RE-6
  Light  LED Light
  Rear ramp and steel floor  ramp spring type
