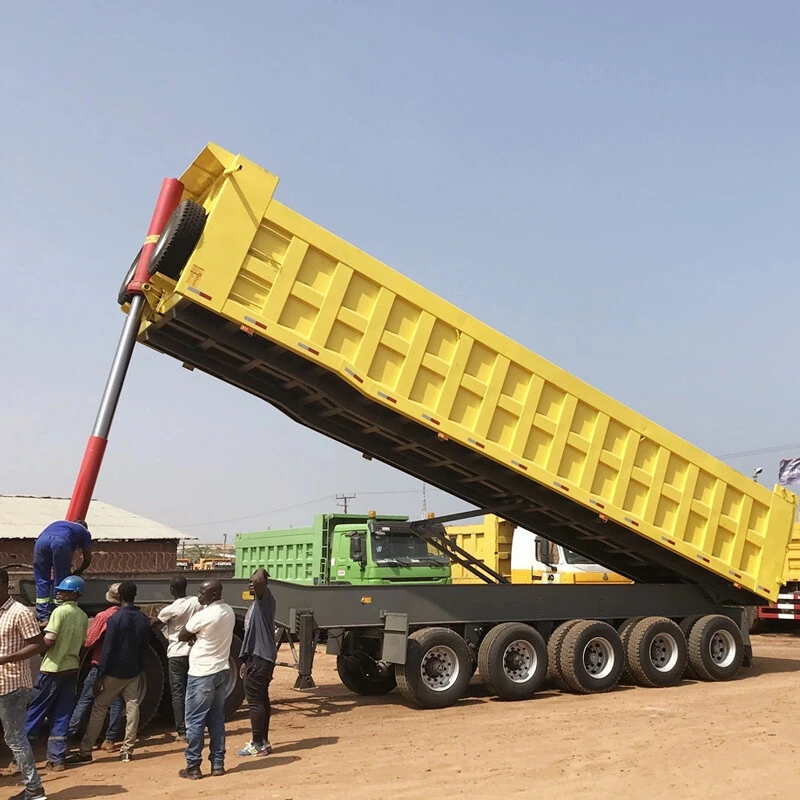

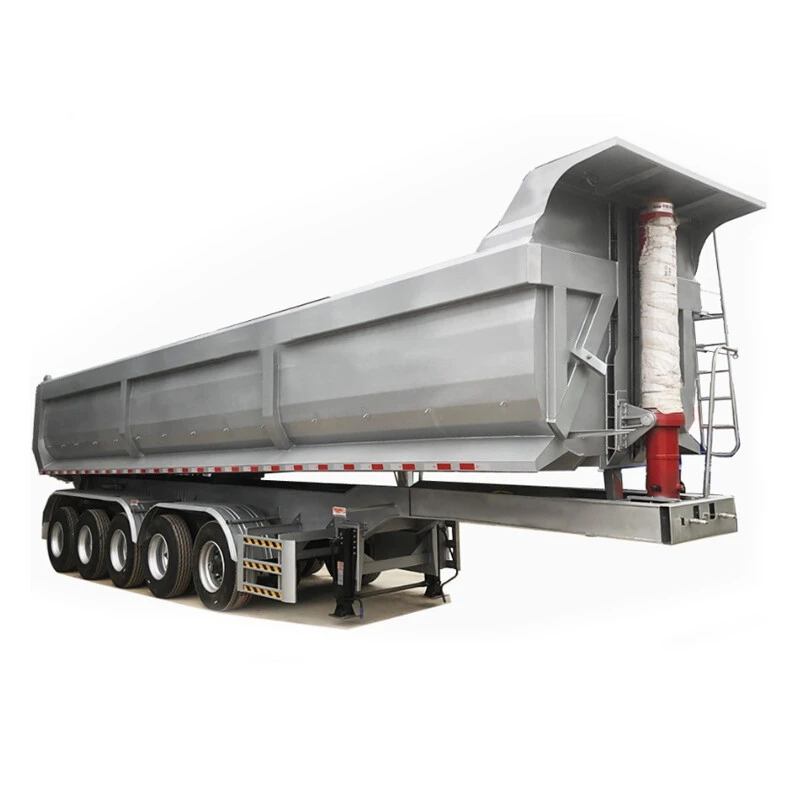

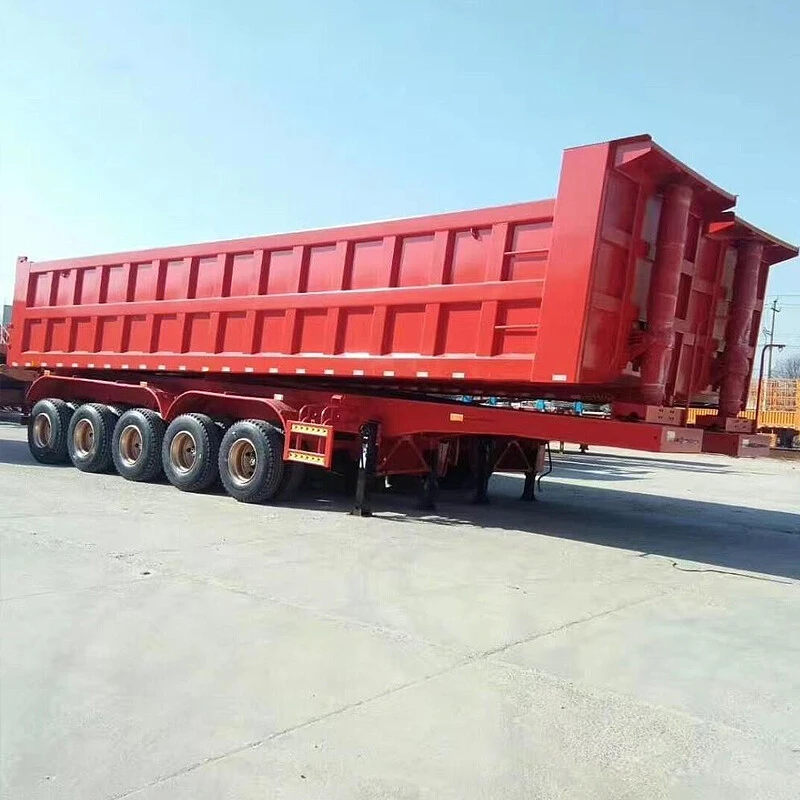

5 Axles U Shape Tipper Trailer
Widely usage in transport sand, rocks, bauxite etc construction . The chassis build with thick high tensile steel plate to ensure the durability. we also designed not only strong tipper trailers, but also with accurate calculate of the angle of the lift cylinders.
Tel : +86 15506439065
Email : VIP@zonghuimaterial.com
WhatsAPP : +86 15506439065
Address : Room 3805 Metropolitan Vanke CenterLixia district Jinan City Shandong Province

Product Details

Specifications


  Dimension  11050*2500*3850mm (Customized)
  Bucket  10300*2400*1800mm
  Load Capacity  80-100Ton
  Usage  Transport sand, rock, gravel etc construction materials
  Cylinders  Heavy duty lifting system
  Main Beam  High tension carbon steel
  Painting  Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2coats of final paints
  Axle  Heavy duty FUWA/BPW/Chinese Brand
  Suspension  Mechanial / Air Suspension
  King Pin  2” or 3.5”
  Landing Gear  28T lifting capacity with two speed
  Tire  12.00R20
  Brake System  WABCO, ABS Optional
  Leaf Spring  90mm(W)*16mm(T)*10 Layer (Option:90/16/10;100/16/10)
  Electrial System  24V; 7 ways receptacle; LED lamps
  Accessories  One tool box, one spare tire carrier
  Colour and Marking  Comply with the customer’s requirement
